Diesel Generator 40 kW VICTORY G50BS Genmac
Country of origin: Italy, warranty period – 24 months
The Diesel Generator 40 kW VICTORY G50BS Genmac is a professional three-phase power source designed to provide continuous, stable, and reliable electricity for industrial, construction, commercial, and large infrastructure applications. Its robust construction, water-cooled four-cylinder turbocharged engine, and advanced electronic control system ensure maximum efficiency and safety during intensive operation. This generator is ideal for both primary and backup power supply, minimizing downtime costs and ensuring uninterrupted equipment operation.
Functions:
- Continuous output of 40 kW (50 kVA) and maximum output of 44 kW (55 kVA) for three-phase equipment
- Baudouin 4M06G55/5 four-cylinder diesel engine with turbo intercooler and electronic speed control
- Water cooling system with a 2.30 l displacement engine
- Durable electro-galvanized steel enclosure with large service doors
- Laser-cut panels, weatherproof sealing, and lockable doors
- Integrated semi-residential muffler reducing noise level to 70 dBA at 7 m
- AVR automatic voltage regulation for consistent output voltage
- Stamford S1L2-Y1 self-activating alternator
- QTVA-AMF5 control panel with ComAp IntelliNano AMF5 controller: voltmeter, ammeter, frequency meter, power indicators, hour meter
- Safety systems: overload protection, low oil pressure protection, high coolant temperature protection, low fuel level protection, battery charger fault protection, overspeed protection

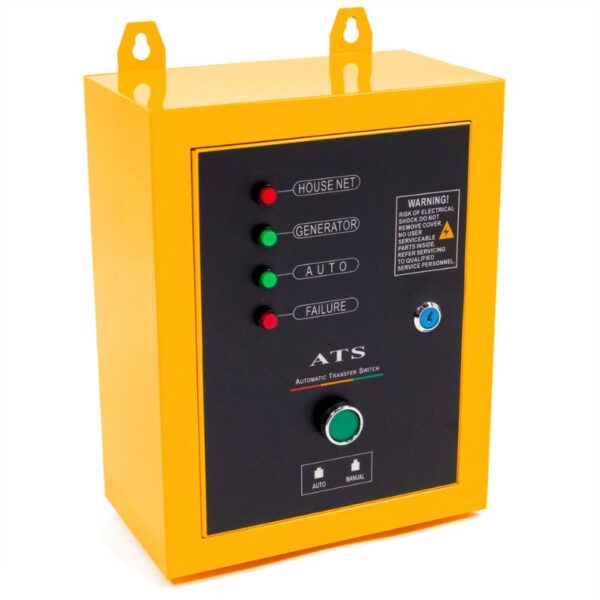

- Emergency stop button and ATS automatic start module compatibility
- All components are factory-tested to ensure maximum reliability and durability
Technical specifications:
- Continuous power PRP: 40 kW / 50 kVA
- Maximum power LTP: 44 kW / 55 kVA
- Voltage: 400/230 V
- Frequency: 50 Hz
- Current PRP/LTP: 72 A / 79 A
- Engine: Baudouin 4M06G55/5
- Engine power PRP: 44 kW
- Engine power LTP: 48 kW
- Cylinders: 4
- Displacement: 2.30 l
- Fuel: diesel
- Air intake: turbo intercooler
- Cooling: water
- Fuel consumption: 25% – 3.20 l/h; 50% – 6.00 l/h; 75% – 8.90 l/h; 100% – 11.90 l/h
- Autonomous operation at 75% load: approx. 10 hours
- Oil type: SAE 15W40, quantity 9.50 l
- Coolant capacity: 16 l
- Air filter: paper
- Battery: 70 Ah
- Fuel tank capacity: 90 l
- Dimensions: 2100 × 930 × 1280 mm
- Weight: 860 kg
The VICTORY G50BS Genmac diesel generator offers a combination of reliable performance, high power output, and professional-grade construction, ensuring maximum efficiency and safe operation across various applications. If you are looking for a powerful, durable, and economical generator for industrial or commercial use, this model is an excellent choice.
