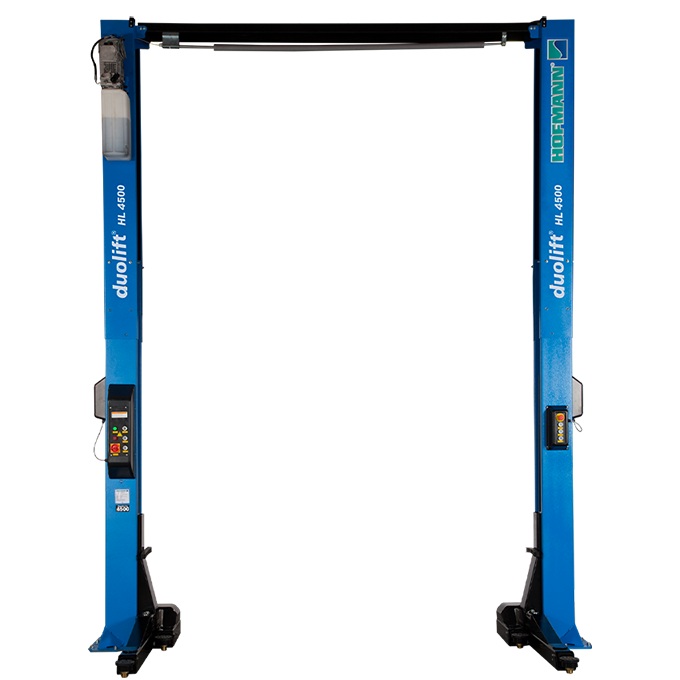

Two-Post Hydraulic Lift duolift® HL 4500 TALL Hofmann
Country of origin: Italy, warranty period – 24 months
The two-post lift duolift® HL 4500 TALL is a taller version with column extensions, designed for passenger cars, SUVs, transporters, and medium-sized vans with a high roof. It ensures optimal drive-through height, allowing for convenient operation in workshops and service stations.
Technical Specifications:
- Lifting capacity: 4500 kg
- Lifting time: 30 sec.
- Overall width: 3599 mm
- Drive-through width: 2380 mm
- Maximum lifting height: 1969 mm
- Overall height: 4600 / 4950 mm
- Power supply: 400-415V, 50Hz, 3Ph
Trolley Clearance Height
- The lifting carriage is strong and durable, with a dedicated lubrication point to ensure smooth operation. It provides ample space for vehicle doors, while the additional rubber protection helps prevent damage during lifting.
Comfortable Lowering
- The lift automatically rises slightly to release the carriage from the safety lock, then smoothly lowers the vehicle.
Control System
- The control panel is strategically positioned on the main column in an ergonomic manner, with clearly marked functions, allowing the user to operate the lift easily and intuitively.
Flexible Installation Options
- The lift is available in two different versions that can be installed at different heights, both in low and high variants.
Optimal Safety
- The integrated CE stop mechanism eliminates the need for mechanical foot guards, providing an additional sense of safety for the technician.
Safety Locking System
- The locking mechanism remains engaged throughout the lifting process. Additionally, it can be conveniently activated at any time by simply pressing the lock button.
Emergency Shut-Off Bar
- The protective emergency shut-off bar prevents damage to the upper part of the vehicle by automatically stopping the lift operation when it encounters an obstacle.
Three-Stage Arms
The front and rear three-stage arms always ensure perfect access to the vehicle’s lifting points.
Versymmetric® Technology
Versymmetric® technology combines the advantages of both asymmetric and symmetric lifting configurations, improving ergonomics and allowing optimal positioning of lifting arms for vehicle elevation.
